Unique Features

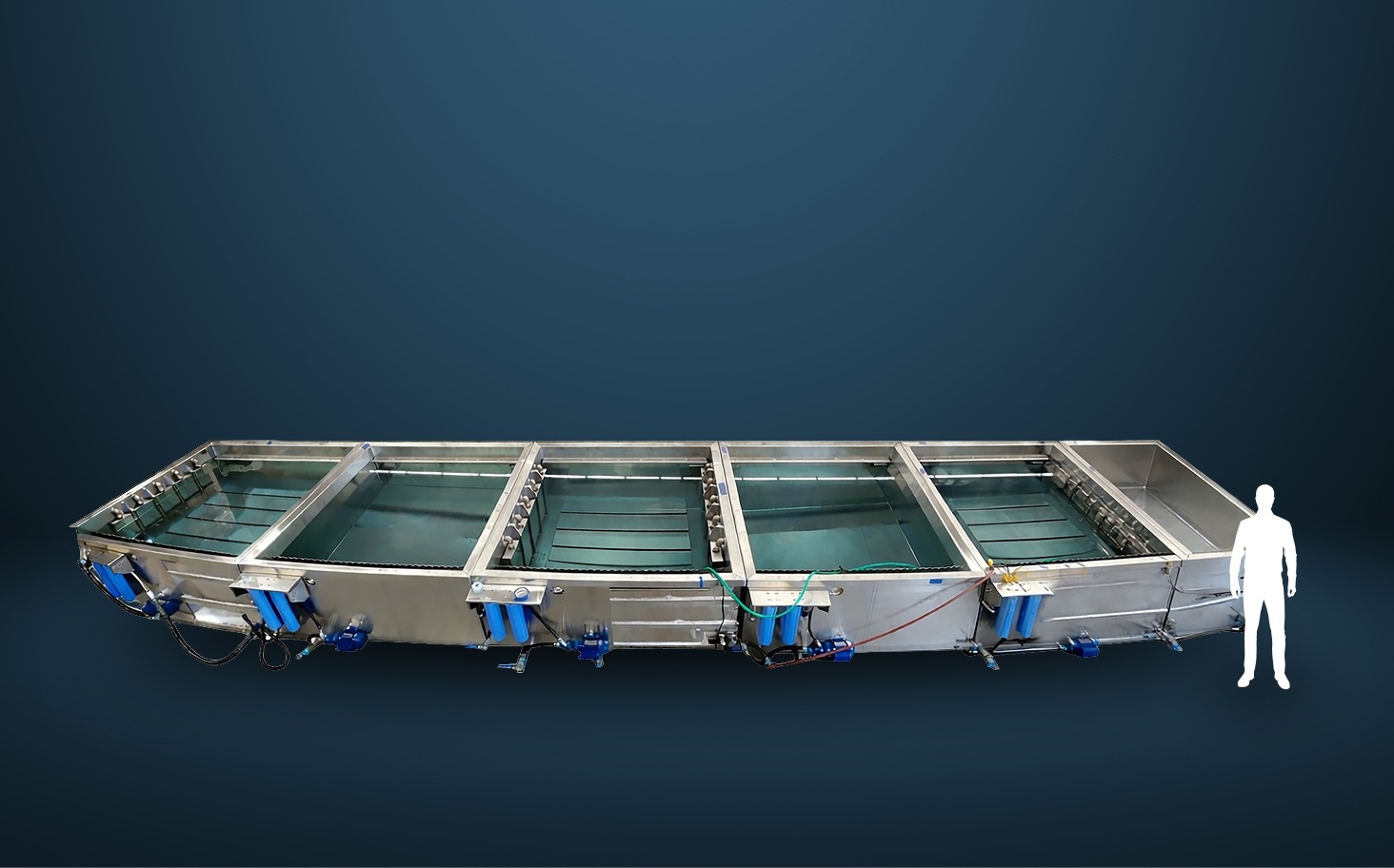

Cleaning Stages Overview (Right to Left)

• Stage 0 – High-Heat Flush Pre-Wash
  Removes heavy soils and prepares parts for ultrasonic cleaning.

• Stage 1 – Ultrasonic + Heat + Filtration
  40 kHz ultrasonic cleaning combined with heated solution and continuous filtration.

• Stage 2 – Heat + Filtration
  Thermal cleaning and flushing stage with active filtration.

• Stage 3 – Ultrasonic + Heat + Filtration (Citric-Safe Tank)
  Upgraded tank material specifically designed for citric acid passivation applications.

• Stage 4 – Heat + Filtration
  Rinse and contaminant removal with temperature control.

• Stage 5 – Ultrasonic + Heat + Filtration
  Final ultrasonic precision cleaning stage for critical cleanliness requirements.

• Ultrasonic Tanks (Stages 1, 3, 5):

  • 40 kHz frequency

  • 30,000 Watts peak ultrasonic power per tank

• Filtration (Stages 1–5):

  • Dedicated pump per tank

  • 6” weir system

  • 2-stage filtration for continuous contaminant removal

• Heating (Stages 1–5): 15,000 Watts per tank

• Controls: Mobile pedestal control system for flexible operation and positioning

• Electrical: 3-phase / 480 VAC (consistent with existing industrial installations)

• Compliance: Built to UL standards

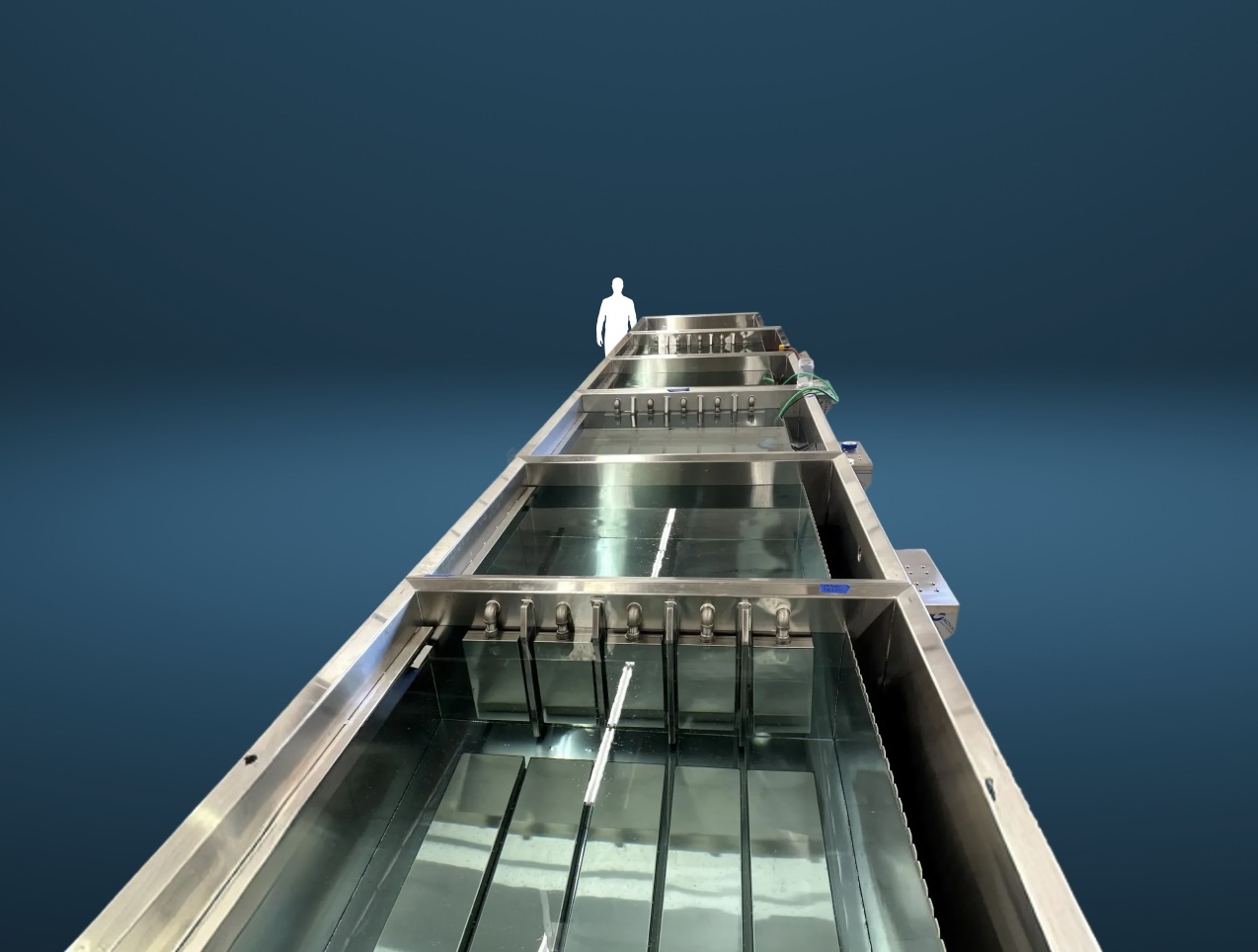

Tank Dimensions

• 74″ length x 74″ width x 42″ working depth X 5

Overall Dimensions

• 405″ length x 78 width x 54″ height

Gallons

• 4985 Gallons (990 gallons per tank x 5)
